Commissioning & Service Kits

The unglamorous hardware every direct-to-chip deployment needs and nobody stocks: machined 316L caps, plugs, bypass jumpers, and coolant sampling ports for UQD04/06/08 loops. We machine them in Van Alstyne on our own spindles and ship in days. No more panic-buying one-off plugs at 12-week lead times.

Machined and assembled in Van Alstyne, TX. Caps and jumpers ship in 5-7 business days
316L stainless on every wetted surface, EPDM seals compatible with PG25 and treated DI water
Every wetted part cleaned, DI-rinsed, capped and double-bagged for coolant service. Open the bag at the rack

When a rack shows up before the servers do, somebody has to close the loop: jumper the manifold drops, cap the open couplings, pull a coolant sample, and prove the loop holds pressure. Today most techs improvise that hardware or pay panic pricing for it. We productized it instead. Every wetted part here is 316L stainless machined in our Van Alstyne shop, sealed with EPDM compatible with PG25 and treated DI water, then cleaned, capped, and double-bagged so you can open it at the rack.

Buy caps and plugs by UQD size, bypass jumpers as singles or 10-packs, or grab a complete rack-commissioning kit in a foam-lined case sized for your deployment. Everything is dimensioned to mate with couplings built to the OCP UQD specification, and every jumper is pressure-decay tested before it goes in the bag. If your loop uses a different interface or hose length, we machine configured-to-order, ask.

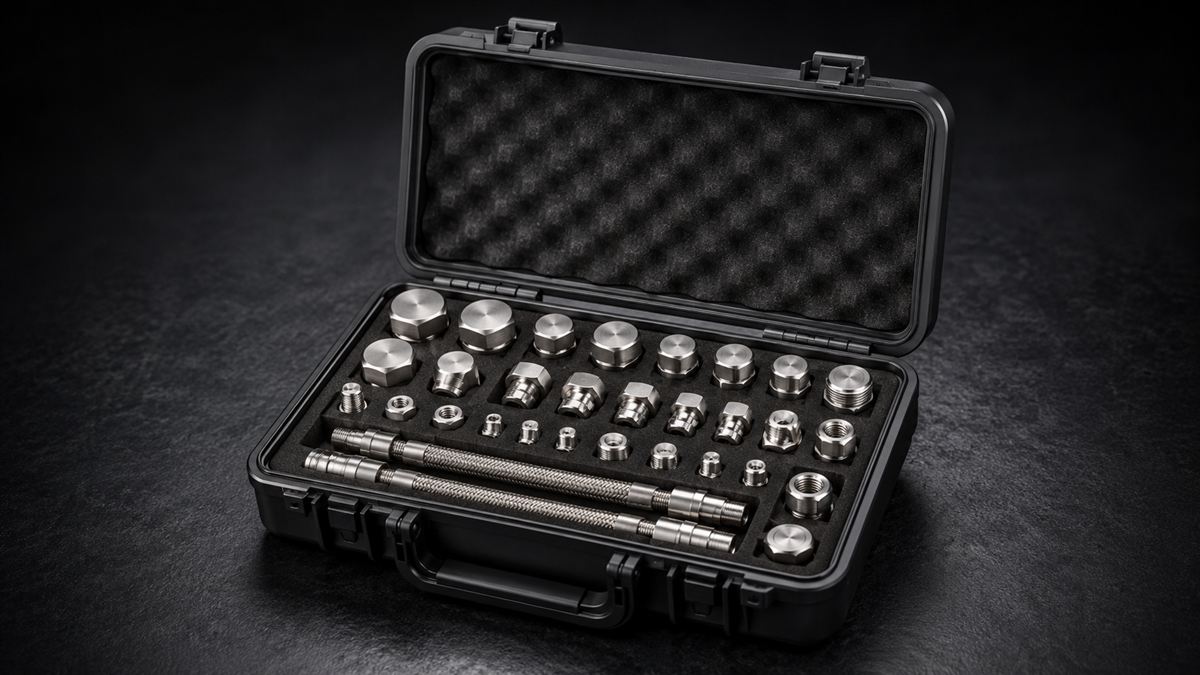

Commissioning & Service Kits product photo

8 PRODUCTS · IN-STOCK ITEMS SHIP IN 5-7 BUSINESS DAYS

RH-CSK-CAP-04

UQD04 Cap & Plug Set (6+6)

316L SSUQD04In Stock

Open UQD couplings collect dust, drip residual coolant, and get their seal faces dinged on ladder rails. This set covers six coupling pairs: six caps for the plug (male) halves and six plugs for the socket (female) halves, each machined from 316L bar in our Van Alstyne shop. EPDM O-rings seal against residual loop pressure so a disconnected drop stays dry through the rest of the build. Cross-drilled for lanyards so they stay with the rack, not in someone's pocket.

Interface	UQD04 (mates couplings built to OCP UQD spec)
Set contents	6 plug-half caps + 6 socket-half plugs
Body material	316L stainless, machined from bar
Seal material	EPDM O-rings, PG25 / treated DI water compatible
Residual pressure seal	Designed to seal to 50 psi (3.4 bar) static
Retention	Cross-drilled for 1/16 in lanyard cable
Cleanliness	Cleaned, DI-rinsed, double-bagged for coolant service
Country of origin	USA (Van Alstyne, TX)

$350/ kit

In-stock items ship in 5-7 business days

PO instead? Send it over

RH-CSK-CAP-06

UQD06 Cap & Plug Set (6+6)

316L SSUQD06In Stock

UQD06 is the workhorse size on most ORV3 direct-to-chip deployments, which means it is also the size most often left open, dripping, and collecting drywall dust during fit-out. This set protects six coupling pairs with 316L caps and plugs sealed by EPDM O-rings. Cleaned, double-bagged, and at the rack the week you need them.

Interface	UQD06 (mates couplings built to OCP UQD spec)
Set contents	6 plug-half caps + 6 socket-half plugs
Body material	316L stainless, machined from bar
Seal material	EPDM O-rings, PG25 / treated DI water compatible
Residual pressure seal	Designed to seal to 50 psi (3.4 bar) static
Retention	Cross-drilled for 1/16 in lanyard cable
Cleanliness	Cleaned, DI-rinsed, double-bagged for coolant service
Country of origin	USA (Van Alstyne, TX)

$440/ kit

In-stock items ship in 5-7 business days

PO instead? Send it over

RH-CSK-CAP-08

UQD08 Cap & Plug Set (6+6)

316L SSUQD08In Stock

The big drops, manifold feeds and CDU-side connections, are the ones you least want open to the room. This UQD08 set covers six coupling pairs with 316L caps and plugs, EPDM-sealed against residual pressure so an opened connection stays dry and clean until the loop goes back together. Same Van Alstyne machining, same cleaned-and-bagged handling as everything else we ship for coolant service.

Interface	UQD08 (mates couplings built to OCP UQD spec)
Set contents	6 plug-half caps + 6 socket-half plugs
Body material	316L stainless, machined from bar
Seal material	EPDM O-rings, PG25 / treated DI water compatible
Residual pressure seal	Designed to seal to 50 psi (3.4 bar) static
Retention	Cross-drilled for 1/16 in lanyard cable
Cleanliness	Cleaned, DI-rinsed, double-bagged for coolant service
Country of origin	USA (Van Alstyne, TX)

$400/ kit

In-stock items ship in 5-7 business days

PO instead? Send it over

RH-CSK-JMP-06

UQD06 Bypass Jumper, 24 in

316L SSORV3Leak Tested

Racks land weeks before servers do, and the manifold still has to be flushed, filled, and pressure-tested. This jumper drops into a supply and return manifold socket pair in place of a server loop, closing the circuit so you can run the CDU. 316L barb fittings with crimped 304 collars on reinforced EPDM hose; every jumper is pressure-decay tested in our shop before it is bagged. Standard build is plug-to-plug at 24 inches; other end configurations and lengths are configured-to-order.

End fittings	UQD06 plug x UQD06 plug (other configs to order)
Hose	3/8 in ID reinforced EPDM, 24 in overall length
Fittings	316L stainless barbs, crimped 304 SS collars
Working pressure	Designed for 125 psi (8.6 bar) at 104 F (40 C)
Test	100% pressure-decay tested at 100 psi before bagging
Temperature range	34 F to 140 F (1 C to 60 C)
Flush flow	Passes flush flows to 20 LPM with minimal restriction
Fluid compatibility	PG25, treated DI water
Country of origin	USA (Van Alstyne, TX)

$360/ ea

In-stock items ship in 5-7 business days

PO instead? Send it over

RH-CSK-JMP-06-10PK

UQD06 Bypass Jumper, 24 in (10-Pack)

316L SS10-PackLeak Tested

One jumper closes one server position; a real commissioning run needs a stack of them. This 10-pack is the same 24-inch UQD06 plug-to-plug jumper we sell as a single, every one pressure-decay tested and individually bagged, at roughly 11% off single-unit pricing. Ten jumpers is typically enough to close out a partially populated rack for flush and pressure test, or to spread across several racks during staged bring-up.

Pack contents	10 x RH-CSK-JMP-06, individually bagged
End fittings	UQD06 plug x UQD06 plug (other configs to order)
Hose	3/8 in ID reinforced EPDM, 24 in overall length
Fittings	316L stainless barbs, crimped 304 SS collars
Working pressure	Designed for 125 psi (8.6 bar) at 104 F (40 C)
Test	100% pressure-decay tested at 100 psi before bagging
Fluid compatibility	PG25, treated DI water
Country of origin	USA (Van Alstyne, TX)

$2,250/ kit

In-stock items ship in 5-7 business days

PO instead? Send it over

RH-CSK-SPL-KIT

Coolant Sampling Port Kit

316L SSPG25In Stock

Coolant chemistry drifts, glycol concentration, pH, particulates, bacteria, and pulling a clean sample from a live loop should not involve cracking a fitting over a drip pan. This kit centers on a 316L sampling adapter that connects into a spare UQD manifold drop, with an integral stainless needle valve metering flow through FEP tubing into the bottle. Includes twelve 60 mL HDPE sample bottles, labels, and loop log cards so samples arrive at the lab traceable to a rack and date. Specify UQD04 or UQD06 adapter interface at checkout.

Adapter interface	UQD04 or UQD06 plug (select at checkout)
Body material	316L stainless body, stainless needle valve
Working pressure	Designed for 150 psi (10.3 bar)
Sample line	1/8 in FEP tubing, 18 in, replaceable
Kit contents	Adapter, valve, tubing, 12 x 60 mL HDPE bottles, labels, log cards, nitrile gloves
Fluid compatibility	PG25, treated DI water
Cleanliness	Wetted parts cleaned, DI-rinsed, double-bagged
Country of origin	USA (Van Alstyne, TX)

$400/ kit

In-stock items ship in 5-7 business days

PO instead? Send it over

RH-CSK-RACK-04

4-Rack Commissioning Kit

Complete KitORV3316L SS

Everything one tech needs to flush, close, test, and sample up to four racks, in one foam-lined hard case instead of a milk crate of ad hoc parts. Inside: four UQD06 bypass jumpers, a 6+6 cap and plug set in each of UQD04, UQD06, and UQD08, a complete coolant sampling port kit, and an EPDM O-ring spares assortment. Each component sits in a cut foam pocket so a missing part is obvious at pack-out. Priced about 11% under buying the contents separately, and the case is yours for the next site.

Bypass jumpers	4 x UQD06 plug x plug, 24 in (RH-CSK-JMP-06)
Cap & plug sets	1 each: UQD04, UQD06, UQD08 (6+6 sets)
Sampling	1 x Coolant Sampling Port Kit (RH-CSK-SPL-KIT)
Spares	EPDM O-ring assortment for all included sizes
Case	Foam-lined hard case, cut pockets per component
Case size / weight	Approx 22 x 14 x 9 in, 19 lb loaded
Coverage	Sized for commissioning up to 4 racks concurrently
Country of origin	Machined components USA (Van Alstyne, TX)

$2,200/ kit

In-stock items ship in 5-7 business days

PO instead? Send it over

RH-CSK-RACK-12

12-Rack Commissioning Kit

Complete KitORV3316L SS

For row-scale bring-up where two techs are working racks in parallel. The wheeled, foam-lined case carries ten UQD06 bypass jumpers, two 6+6 cap and plug sets in each of UQD04, UQD06, and UQD08, two complete sampling port kits so sampling does not bottleneck on one adapter, and an expanded EPDM O-ring spares assortment. Every wetted component is 316L, individually tested where applicable, and bagged for coolant service. Sized for commissioning up to twelve racks per deployment wave.

Bypass jumpers	10 x UQD06 plug x plug, 24 in (RH-CSK-JMP-06)
Cap & plug sets	2 each: UQD04, UQD06, UQD08 (6+6 sets)
Sampling	2 x Coolant Sampling Port Kit (RH-CSK-SPL-KIT)
Spares	Expanded EPDM O-ring assortment, spare FEP sample lines
Case	Wheeled foam-lined hard case, cut pockets per component
Case size / weight	Approx 25 x 17 x 13 in, 44 lb loaded
Coverage	Sized for commissioning up to 12 racks per wave
Country of origin	Machined components USA (Van Alstyne, TX)

$4,700/ kit

In-stock items ship in 5-7 business days

PO instead? Send it over
