Manifold Mounting & Seismic Hardware

Most retrofit racks were never drilled for liquid cooling. Our machined brackets, standoffs, and seismic restraint kits get ORV3-style manifolds and coolant infrastructure mounted square, plumb, and braced in legacy EIA-310 racks. Cut and machined in our Van Alstyne shop, so a missing bracket never holds up a commissioning date.

  • Machined in-house in Van Alstyne, TX - brackets in days, not a 12-week PO black hole
  • Published working-load ratings with stated safety factors, not catalog hand-waving
  • Slotted everything: designed around retrofit racks that never match the drawing

Direct-to-chip retrofits live or die on the boring hardware. When the manifold hole pattern doesn't land on the rack, techs start improvising with strut scraps and hardware-store angle - and that's what fails inspection. This line exists so you never have to improvise: slotted brackets with real adjustment range, standoffs that let you set manifold-to-rail depth precisely, and restraint kits with published load ratings.

Everything here is machined or formed in-house from 304 stainless or zinc-plated steel, deburred, and shipped with all mounting hardware included. Load ratings are stated as design working loads with the safety factor listed - no mystery numbers. If your rack is odd enough that nothing here fits, send us a photo and a tape-measure sketch and we'll modify a bracket to suit.

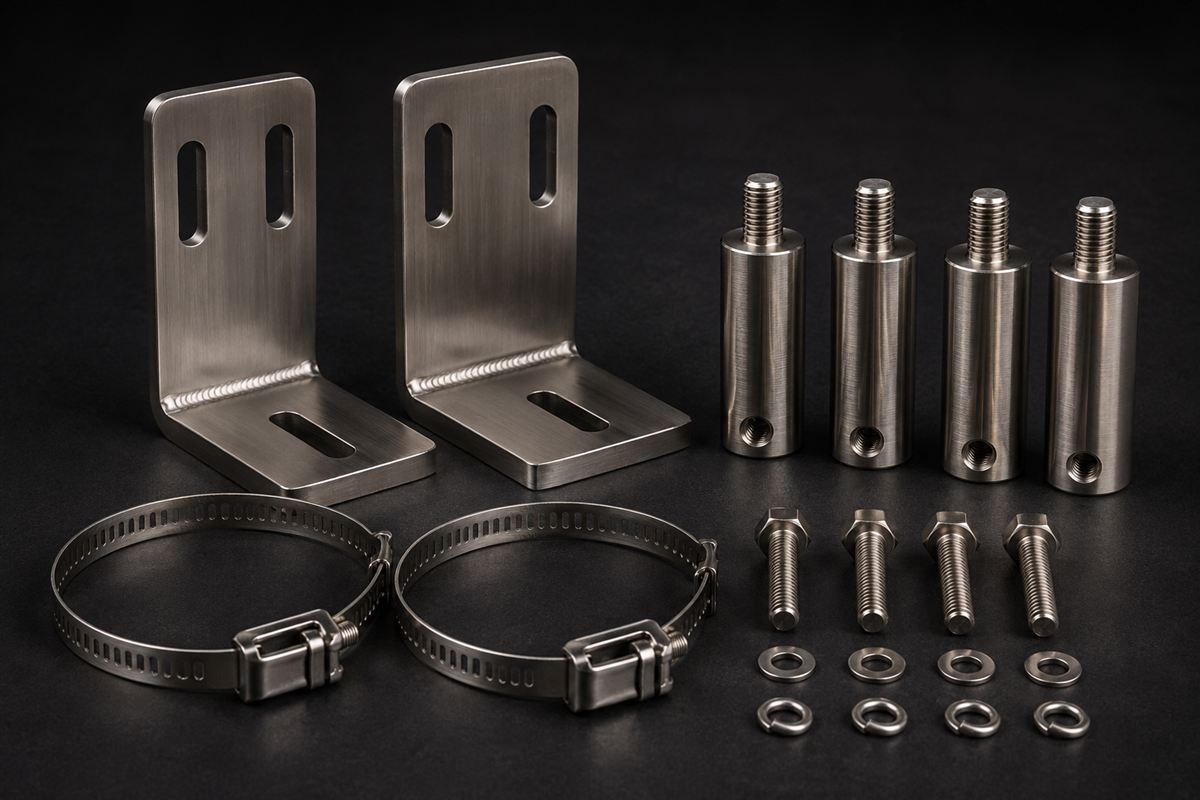

Manifold Mounting & Seismic Hardware product photo
6 PRODUCTS · IN-STOCK PARTS SHIP IN 5-7 BUSINESS DAYS
RH-MB-U2

Universal Manifold Bracket Pair, Slotted 304SS

304 SSSlottedIn Stock

A pair of 11-gauge 304 stainless brackets with dual slotted mounting faces, sized to hang a vertical coolant manifold off standard EIA-310 rack rails or generic square-hole posts. Horizontal and vertical slots give you 2.0 inches of adjustment in each axis, so the manifold lands where the hose lengths want it, not where the rack maker decided. Edges are machine-deburred so you are not dragging gloves across sheared steel in a hot aisle. Ships with all rail-side and manifold-side fasteners.

Material304 stainless steel, 11 ga (0.120 in)
Working load rating250 lbf per pair (3:1 design safety factor)
Slot adjustment range2.0 in horizontal x 2.0 in vertical
FinishPassivated per ASTM A967, deburred edges
Hardware includedM6 and 1/4-20 flange bolts, serrated flange nuts, M6 cage nuts
Rack compatibilityEIA-310 19 in (square or round hole), 21 in OCP, generic 4-post
Manifold interfaceSlotted pattern fits 40-100 mm bolt spacing on manifold tabs
$140/ kit
In-stock parts ship in 5-7 business days
PO instead? Send it over
RH-SR-450

Heavy Seismic Restraint Kit, Liquid-Cooled Rack

Seismic2,000 lbfMade in USA

Four-point restraint kit for racks carrying the extra mass of coolant manifolds, hoses, and a wet PG25 loop - weight the original rack anchorage was never sized for. Includes four 7-gauge steel anchor brackets, rigid brace angles, and grade-rated hardware, with slotted base plates to clear existing floor anchors. Designed to support seismic bracing requirements under IBC 2021 / ASCE 7 Chapter 13; project-specific anchorage design and calculations remain the responsibility of the engineer of record. Load path documentation and material certs ship with every kit for your commissioning package.

MaterialSteel brackets 7 ga (0.179 in), zinc plated; 304SS option on request
Working load rating2,000 lbf per bracket (4 per kit); verified by in-house load testing
Slot adjustment range1.5 in slotted base plates, clears existing anchor layouts
FinishZinc plated per ASTM B633
Hardware includedGrade 5 bolts, hardened washers, brace angles; concrete anchors by others
Rack compatibilityEIA-310 19 in and 21 in OCP frames, 600-800 mm wide
Code alignmentDesigned to support bracing per IBC 2021 / ASCE 7 Ch. 13; EOR to verify anchorage
DocumentationMaterial certs and dimensional drawing included
$760/ kit
In-stock parts ship in 5-7 business days
PO instead? Send it over
RH-SO-12

Adjustable Standoff Set, 1.0-2.0 in (8-Pack)

304 SS8-PackIn Stock

Eight turned 304 stainless standoffs with a threaded adjustment sleeve and jam nut, giving 1.0 to 2.0 inches of depth between the rack rail and whatever you are hanging - manifold tabs, hose saddles, sensor brackets. Set the depth, snug the jam nut, and the standoff will not creep under vibration. Turned on our own machines, so threads are clean and the flats actually take a wrench.

Material304 stainless steel, turned; jam nuts 304SS
Working load rating150 lbf axial per standoff (3:1 design safety factor)
Adjustment range1.0-2.0 in, infinitely adjustable with jam nut lock
Thread1/4-20 UNC both ends; M6 x 1.0 version on request
FinishPassivated per ASTM A967
Hardware included8 standoffs, 8 jam nuts, 16 washers
$330/ kit
In-stock parts ship in 5-7 business days
PO instead? Send it over
RH-SO-24

Adjustable Standoff Set, 2.0-4.0 in Heavy (8-Pack)

304 SSHeavy DutyIn Stock

Same construction as our 1-2 inch set, scaled up in diameter for longer reach without going wobbly. Use these when the manifold has to stand off past a cable tray, PDU, or busbar that the original rack layout put in exactly the wrong place. The larger 5/8 inch body keeps column stiffness at full extension, and the 3/8-16 thread carries real load. Each set ships with jam nuts and washers.

Material304 stainless steel, 5/8 in turned body
Working load rating250 lbf axial per standoff (3:1 design safety factor)
Adjustment range2.0-4.0 in, infinitely adjustable with jam nut lock
Thread3/8-16 UNC both ends
FinishPassivated per ASTM A967
Hardware included8 standoffs, 8 jam nuts, 16 washers
$310/ kit
In-stock parts ship in 5-7 business days
PO instead? Send it over
RH-RA-19

Retrofit Rail Adapter Kit, Legacy 19 in Rack to ORV3 Manifold

ORV3Retrofit304 SS

A pair of full-height slotted adapter rails that bolt to legacy EIA-310 19 inch rack posts and present an ORV3-style mounting interface for vertical coolant manifolds. Continuous vertical slots mean the manifold can sit at any height, and the rails carry the load into multiple U positions instead of two overloaded screws. This is the kit for colo retrofits where the rack stays and the cooling changes. Includes rail-to-post and manifold-to-rail hardware for square-hole and round-hole racks.

Material304 stainless steel, 12 ga (0.105 in), formed channel
Working load rating400 lbf per rail pair (3:1 design safety factor)
Slot adjustment rangeContinuous vertical slot, full rail length; 1.0 in lateral
Rail length options42U (73.5 in) standard; 45U and 48U on request
FinishPassivated per ASTM A967, deburred
Hardware includedM6 cage nuts, 12-24 and M6 rail screws, manifold-side flange bolts
Rack compatibilityEIA-310 19 in, square or round hole, 4-post
Manifold compatibilityORV3-geometry vertical manifolds and Rigid Hardware manifold line
$500/ kit
In-stock parts ship in 5-7 business days
PO instead? Send it over
RH-TR-38

Threaded-Rod Drop Kit, Overhead Coolant Line Support

OverheadPG25 LoopsIn Stock

Everything for four overhead drops supporting coolant supply and return runs between the CDU and the rack line: 3/8-16 all-thread, strut-compatible channel hardware, and machined saddle brackets sized for insulated coolant hose and pipe up to 2 inch OD. Saddles are radiused and deburred so they will not chew through hose jacket or insulation over years of thermal cycling. Rod couplers included so drops can be extended for high ceilings. Attachment to building structure is by others - use rated beam clamps or concrete anchors per your project spec.

Rod3/8-16 zinc-plated all-thread, 4 x 36 in lengths, couplers included
Working load rating300 lbf per drop (5:1 on rod tensile)
Saddle capacityCoolant hose or pipe 0.75-2.0 in OD, insulated or bare
Saddle materialMachined 6061-T6 aluminum, radiused bearing surface
FinishZinc plated rod per ASTM B633; anodized saddles
Hardware included4 rods, 4 saddles, 8 couplers, channel nuts, hex nuts, washers
CompatibilityFits 1-5/8 in strut channel; building attachment hardware by others
$390/ kit
In-stock parts ship in 5-7 business days
PO instead? Send it over
