Coolant Sampling & Filtration Skids

Debris from construction, brazing scale, and biofouling all end up in someone's cold plate. This line covers the hardware nobody makes purpose-built — inline 316L filter housings, low-dead-leg sample stations, and turnkey side-stream skids sized for PG25 secondary loops. Every wetted part is machined here, cleaned, capped, and bagged for coolant service.

316L stainless standard on every wetted part — machined, cleaned, capped, and bagged in our own Van Alstyne shop
Standard 2.5 in OD cartridge format means replacement elements are commodity items, not a captive consumable
Configured-to-order in days: connection sizes, micron ratings, and frame material changed without a 12-week requote

Most liquid-cooled facilities are running lab draws through whatever ball valve was closest, and filtering the loop with hardware borrowed from the hydronics aisle. That works until a particle count comes back ugly and nobody can prove where the sample was taken or what it touched on the way out. These products exist so your fluid-quality program has defensible hardware behind it: dedicated sample points with septum draws, filtration with real micron ratings and differential pressure indication, and documentation that survives a commissioning review.

All wetted components are 316L stainless machined in our Van Alstyne shop, with EPDM seals selected for PG25 (25% propylene glycol) service. Housings accept industry-standard 2.5 in OD cartridge elements, so replacement media is never a sole-source problem. Skids are hydrostatically tested, flushed with DI water, and shipped capped and bagged.

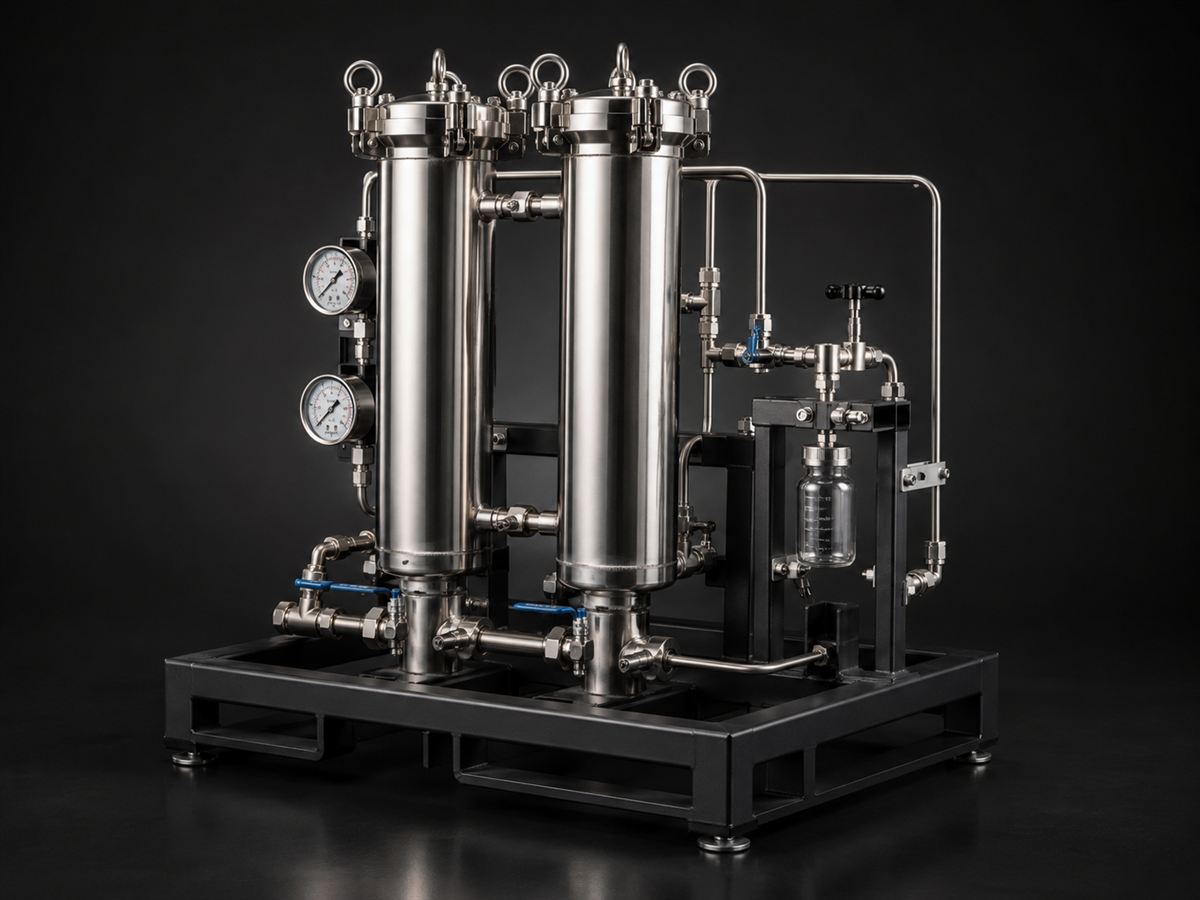

Coolant Sampling & Filtration Skids product photo

6 PRODUCTS · COMPONENTS SHIP IN 5-7 BUSINESS DAYS; ASSEMBLED SKIDS IN 10-15 BUSINESS DAYS

RH-FH-125

Inline Filter Housing, 1 in NPT, 25 Micron

316L SS25 MicronIn Stock

A single-cartridge inline housing machined from 316L bar, not cast. Accepts standard 2.5 in OD x 9.75 in double-open-end cartridges, so you are never locked to our elements. Ships with one 25 micron pleated polypropylene element installed, plus 1/4 in FNPT gauge ports upstream and downstream for differential pressure monitoring. Vent and drain ports let you swap elements without dumping the line.

Connections	1 in FNPT inlet/outlet; 1/4 in FNPT gauge, vent, and drain ports
Flow capacity	10 GPM max; 5 GPM recommended for side-stream service
Element format	2.5 in OD x 9.75 in DOE cartridge (industry standard)
Micron rating	25 micron nominal as shipped; accepts 5-50 micron elements
Body material	316L stainless, machined from bar
Seal material	EPDM O-rings, PG25 compatible
Working pressure	150 psi @ 140 F; hydrostatically tested to 225 psi
Cleanliness	DI-flushed, capped, and double-bagged for coolant service

$1,300/ ea

Components ship in 5-7 business days

PO instead? Send it over

RH-SV-200

Sample Valve Station with Septum Port

316L SSLab DrawsIn Stock

Purpose-built sample point for coolant chemistry programs. The 316L body integrates an isolation ball valve, a needle-type metering valve for controlled draw rate, and a replaceable PTFE-faced silicone septum so lab draws go straight into a syringe with minimal air contact — the way you want it for dissolved metals and particle counts. Low-dead-leg geometry means the first flush actually clears the sample path. Mounts to a 1/2 in MNPT process connection at any panel or tee.

Process connection	1/2 in MNPT
Draw method	Syringe through 20 mm PTFE-faced silicone septum; luer needle compatible
Valving	Isolation ball valve + needle metering valve, both 316 SS
Body material	316L stainless, machined from bar
Seal material	EPDM / PTFE, PG25 compatible
Dead leg	Under 2 mL between isolation valve and septum
Working pressure	150 psi @ 140 F
Spares	Septa are field-replaceable; 10-pack included

$770/ ea

Components ship in 5-7 business days

PO instead? Send it over

RH-SC-300

Portable Coolant Sampling Case

Field KitIn Stock

Everything a commissioning tech needs to pull a coolant sample a lab will actually accept, packed in a waterproof hard case. Bottles and vials are pre-cleaned and capped; labels and chain-of-custody forms match so the sample that leaves the site is the sample the lab reports on. Restock consumables from us or any lab supply house — nothing in the case is proprietary.

Sample containers	12 x 125 mL HDPE bottles; 12 x 40 mL borosilicate vials, PTFE-lined caps
Draw hardware	10 x 60 mL luer-lock syringes with blunt draw needles for septum ports
Documentation	50 chain-of-custody forms; matching pre-printed sample labels
PPE and misc	Nitrile gloves, absorbent wipes, zip-seal transport bags
Case	Waterproof hard case with custom foam, 16 x 13 x 7 in
Compatibility	Sized for PG25 lab panels (glycol %, pH, inhibitors, metals, particle count)

$470/ kit

Components ship in 5-7 business days

PO instead? Send it over

RH-EP-025

Replacement Element Pack, 25 Micron (6-Pack)

Consumable25 MicronIn Stock

Six pleated polypropylene cartridge elements, 25 micron nominal, in the standard 2.5 in OD x 9.75 in DOE format used across every housing and skid in this line. All-polypropylene construction with no adhesives or metal parts in the flow path — nothing to leach into a PG25 loop. Each element is individually bagged. Also available in 5 and 50 micron on request.

Quantity	6 elements per pack
Micron rating	25 micron nominal
Format	2.5 in OD x 9.75 in, double open end
Media	Pleated polypropylene, all-poly construction, no adhesives
Fluid compatibility	PG25, EG solutions, DI water
Change-out indicator	Replace at 12-15 psid or 6 months, whichever first
Fits	RH-FH-125, RH-SK-505, RH-SK-1500

$185/ kit

Components ship in 5-7 business days

PO instead? Send it over

RH-SK-505

Side-Stream Filtration Skid, 5 GPM

316L SSPG25Skid

A compact pumped skid for continuous side-stream polishing of a secondary loop — pull a few percent of loop volume through real filtration around the clock without touching the CDU. The 316 SS magnetic-drive pump draws through an RH-FH-125 housing with a liquid-filled differential pressure gauge across the element, so element life is a reading, not a guess. Connect with the included FNPT terminations or specify UQD-compatible hose ends at order. Hydrostatically tested and DI-flushed before shipment.

Flow rate	5 GPM nominal @ 20 ft TDH
Pump	316 SS magnetic-drive centrifugal, 120 V / 1 ph, cord and plug included
Filtration	Single 316L housing, 25 micron element installed (5-50 micron available)
Instrumentation	2.5 in liquid-filled differential pressure gauge, SS case, 0-30 psid
Connections	3/4 in FNPT suction/return; UQD-compatible hose terminations on request
Frame	Powder-coated steel, forkliftable base
Footprint	24 x 18 in, 36 in tall; approx. 110 lb dry
Fluid compatibility	Designed for PG25 secondary loops, 40-140 F
Testing	Hydrostatically tested to 1.5x design; DI-flushed and capped

$8,850/ ea

Assembled skids in 10-15 business days

PO instead? Send it over

RH-SK-1500

Duplex Filtration Skid, 15 GPM, with DP Gauges

316L SSDuplexSkid

The full-size answer for commissioning flushes and permanent loop polishing. Duplex 316L housings with 316 SS changeover valving let you swap elements on one side while the other carries flow — no interruption, no bypass of dirty coolant. Each housing gets its own liquid-filled differential pressure gauge, and an integrated RH-SV-200 sample station puts a proper lab draw point right on the skid. Stainless frame standard, because this skid lives next to the loop for the life of the site.

Flow rate	15 GPM nominal; pumped by 316 SS magnetic-drive centrifugal, 230 V / 1 ph
Filtration	Duplex 316L housings, 2 elements each, 25 micron installed
Changeover	316 SS ball valve manifold; element swap at full flow
Instrumentation	Two 2.5 in liquid-filled DP gauges, SS case, 0-30 psid
Sampling	Integrated RH-SV-200 septum sample station
Connections	1 in FNPT suction/return; UQD-compatible hose terminations on request
Frame	304 SS, forkliftable base with drip pan
Footprint	36 x 24 in, 42 in tall; approx. 210 lb dry
Testing	Hydrostatically tested to 1.5x design; DI-flushed, capped, and bagged

$16,500/ ea

Assembled skids in 10-15 business days

PO instead? Send it over
